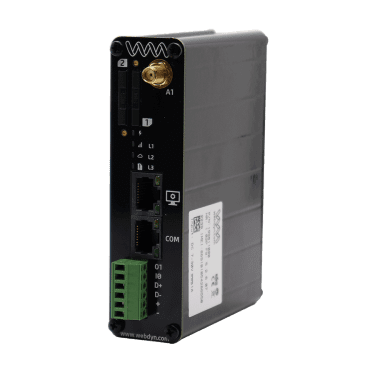

The Webdyn EasyTunnel 4G IoT Gateway is an innovative and powerful all-in one cellular IoT solution. Thanks to its set of interfaces (RS232, RS485, dual SIM, digital I/O…) and the embedded TITAN V6 firmware (Modbus, MQTT, IPSec, logger,…) the unit provides the functionality required for most IoT applications without the need for further hardware, shortening the time-to-market and providing a cost-effective solution.

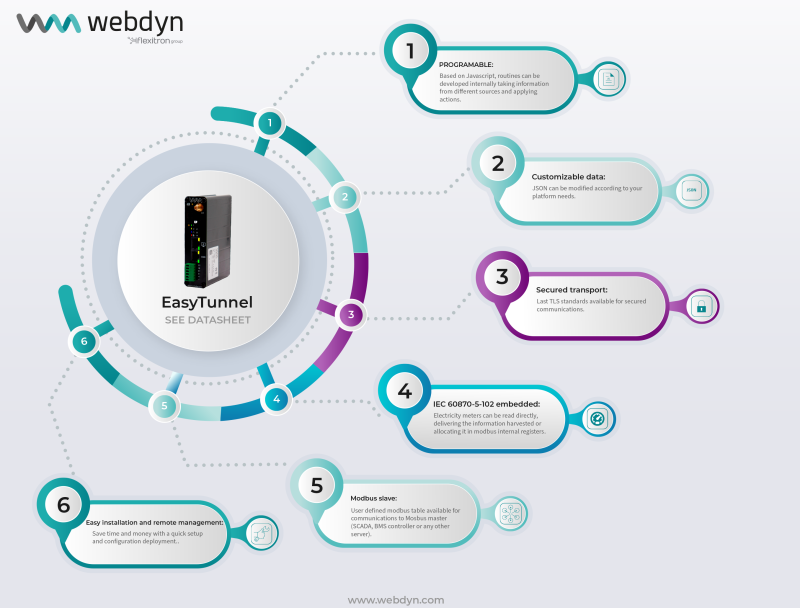

A key feature of the new Webdyn EasyTunnel is the user-programable scripts, based on JAVASCRIPT, that permit easy programming of customised functions for specific applications (edge computing). Additional functions include FIFO/LIFO modes for data queuing, SSL/TLS support, and data sending options (HTTP/HTTPs/FTP/FTPs/MQTT/MQTTs) with custom JSON formats.
Programmable 4G IoT Gateway
The Webdyn EasyTunnel includes Webdyn’s Titan V6 firmware with an embedded webserver to make configuration and setup simple and quick, additional features of the Titan V6 firmware include:
• 2 simultaneous 4G<->RS232/485 connections
• Serial data collected by RS232 or RS485(Modbus, sensors, meters, I/Os…)
• Full control by SMS with phone number authorizations
• SMS and/or Email Alarms (digital input, temp., MBus data read)
• Full management with AT Command by serial, socket, SMS, modbus, SNMP, …
• SSH encryption enabled, supports TACACS+
• Protocol IEC 60870-5-102 for meter reading
The above EasyTunnel features make the unit applicable to endless IoT projects, and ideal for Industry 4.0 applications, examples include:
• Gathering data from electrical meters
• Monitoring solar/Photovoltaic systems
• Monitoring frequency drives used in pumping or other applications
• Temperature/humidity monitoring
• Irrigation pump control and monitoring plus water metering
Contact us about this product
DynDNS or NoIP
Alarm, control & configuration
Modbus RTU/TCP
Analogue IO
Device supports MQTT
DIN Rail Mount
Extended Temperature
Scenario We wish to be able to activate/deactivate relay outputs from an Android, iPhone or other mobile device. The SIM card to be used is to be a standard private (NAT) dynamic IP SIM. Solution MTX-4G-JAVA-T AUS or MTX-4G-JAVA-IoT AUS and MTX Tunnel Firmware. The solution is to use an MQTT broker, to which the intended mobile devices and the MTX-4G-JAVA-IoT AUS modem are subscribed, the modem will then be able to receive commands sent via the broker for control […]
Scenario We have 2 devices RS232 (115200.8, N, 1 flow control HW) linked by a serial cable through which data is sent. The intention is to replace this serial cable by a transparent RS232-4G-RS232 link. Solution 2 MTX-4G-JAVA-IOT AUS or MTX-4G-JAVA-IoT AUS modems + MTX-Tunnel firmware The equipment does not contain a PC, nor is it intelligent, and the internal control programs cannot be changed. The equipment can be considered as “black boxes” with RS232 serial ports that cannot be […]
Scenario We need to monitor remote ModBus RTU devices with the RS485 port from a central Server which has a software application to control ModBus TCP. MTX-Tunnel will create a ModBus TCP/ModBus RTU GPRS gateway. Solution MTX-4G-JAVA-IOT AUS or MTX-4G-JAVA-IoT AUS modems + MTX-Tunnel firmware ModBus remote devices to be available at all times, so the modem connected to those devices is permanently connected be IP waiting for incoming requests to the ModBus TCP port number 502. SIM cards provisioned […]
Scenario We need to monitor 100 devices with the RS232 port (115200.8.N.1 and HW flow control) from a central control station using a GPRS link. This will be done with the MTX-Tunnel to act as a transparent serial GPRS tunnel. Solution MTX-4G-JAVA-T AUS or MTX-4G-JAVA-IoT AUS and MTX Tunnel Firmware. Details: Access to the RS232 remote devices at any time is mandatory. So the modem connected to the serial port device (which needs to be controlled) must remain permanently connected […]
Scenario We want to monitor a water tank level. To do this, an analog input of a modem will be used. The modem will be always connected to 4G/3G and will use a dynamic IP address. The modem must take a measurement every 5 minutes and send it to a Web server via 4G/3G using HTTP GET to create a LOG file with the daily consumption statistics. Also, you need to be able to access the modem’s internal web server […]
Scenario details: We have 5 power meters with ModBus RTU protocol. These meters have a series of readings in their internal memory (e.g. cumulative consumption and average consumption) that we wish to read every 15 minutes and send to a webserver. In addition we want to be able to access MTX-Tunnel at any moment to be able to read PLC records in real time as well as being able to write them and modify the PLC configuration records. Solution MTX-4G-JAVA-IoT […]
